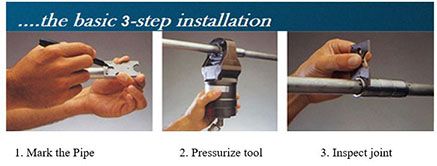

PYPLOK fittings are attached cold, in seconds, by swaging the fitting on the pipe with a hydraulic hand held pre-engineered swage tool. All the labor and associated costs of a welded connection are eliminated.
- No special skilled labor vs. qualified welder
- No hot work permits
- No fire watch required
- No cost to x-ray or re-work welds
PYPLOK is a solution for 1/4 to 2 in. O.D. tube, 6 to 60 mm metric tube and 1/4 to 4 in. NPS pipe. Pressures up to 9,000 psi (620 bar) depending on size and material.

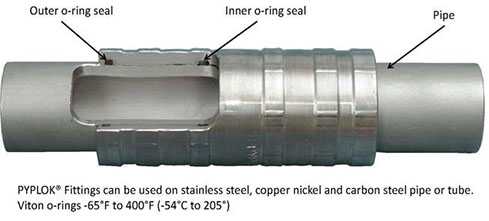

PYPLOK Fitting Materials
Carbon Steel, 316 Stainless Steel (Duplex, Super Duplex), and CuNi 70/30
O-Ring Materials
VITON -26 to 205° C
EPDM EO962-90 (for steam) -51 to 205° C
Tube-Mac Piping Technologies
www.tube-mac.com
www.pyplok.com
