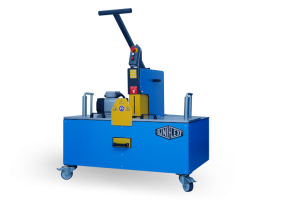

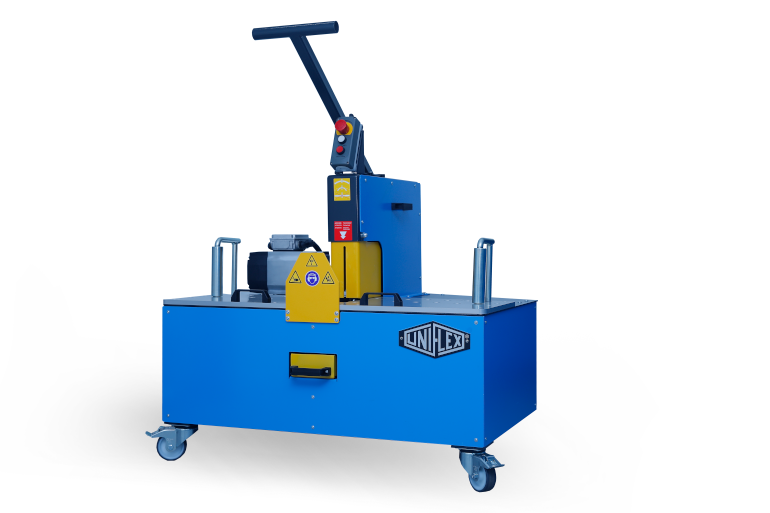

UNIFLEX has launched two new machines for cutting industrial hoses. The EMI 150 and EMI 200 models can cut hoses with diameters up to 6 in. and 8 in., respectively. With their robust design and compact dimensions of 44.9 x 40 in. (1,140 x 1,000 mm) and 63.77 x 42.1 in. (1,620 x 1,070 mm), they can be used in both small and large production workshops.
The machines are equipped with casters, making them mobile. They can be easily moved to the workpiece so that heavy hoses do not have to be carried around the shop. Since the cutting platform is only 21.6 in. (550 mm) high, inserting even heavy hoses is effortless and saves time. Both units feature the specially coated, long-life TM-C cutting blade, which significantly reduces effort and wear during cutting.
As with all UNIFLEX cutting machines, the EMI 150 and EMI 200 use a special cutting motor with a larger shaft than conventional motors, double bearings, and high torque. The motor design allows the blade to be installed close to the bearings, which reduces vibration, cutting waste, and energy consumption, while improving cutting quality, cutting time, and blade life. All machines are CE compliant with a brake to reduce the risk of accidents. UNIFLEX offers an extended two-year warranty on all machines.
UNIFLEX
uniflex-hydraulics.com
