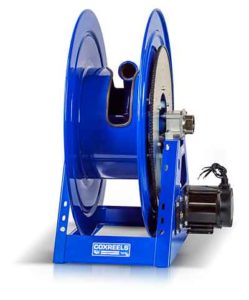

Coxreels introduces the all new gear reducing idler sprockets for the 1195 series electric motorized hose reels. This new add-on benefits the user in reducing the rewind speed, increasing motor torque, and fitting an optional 3-way pin lock.
These high quality, all steel, idler sprockets are chain sprocket assemblies with a corrosion protective coating that change the drive ratio of the motor-to-drum drive system. They are available in three ratios (1:2, 1:3, and 1:4) and each ratio will effectively slow down the rewind speed of the drum by a multiple of the ratio factor and will increase the effective motor torque by the same factor, providing the necessary safety and control during rewind of large, 2 in. diameter hose.
Coxreels idler sprockets are mounted on zinc plated steel axle and rotate on two self-lubricated bronze bearings.
The electric rewind versions of the 1195 hose reels will now come standard with 1:3 gear reduction and the model number has changed accordingly. Non-reduced models will be available if requested for use with electronic speed reducers.
