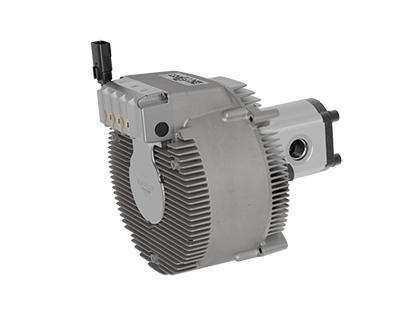

Omni Powertrain Technologies has a new electrohydraulic pump combination. The unit was developed for low voltage mobile applications and is ideally suited for the needs of hybrid equipment builders facing spatial constraints. The system includes a Flo-Torq gear pump packaged with an axial flux motor and controller from Omni’s Magelec subsidiary. The overall package length of 299.7 mm (11.8 in.) offers equipment designers a compact form to power electrohydraulic traction and auxiliary functions.
Featuring a Magelec M17 air-cooled motor with a SAE B mount connection, the complete package weighs 17.6 kilos (38.8 lb). The 48-V system is rated for 46 lpm of continuous flow with a peak pressure rating of 250 bar.
Other pump and motor combinations are available upon request.
Omni Powertrain Technologies is a manufacturer serving on and off-highway markets including agricultural and construction equipment, and commercial vehicles. Omni products include enclosed transmissions, planetary drives, PTO shafts and safety clutches, orbital and gear motors, pumps, manifold blocks, valving, electric motors and power electronics. With operations in the USA, China and Italy, the firm has become a recognized global provider for leading-edge electrical, hydrostatic and mechanical powertrain solutions.
Omni Powertrain Technologies
www.omnipowertrain.com
