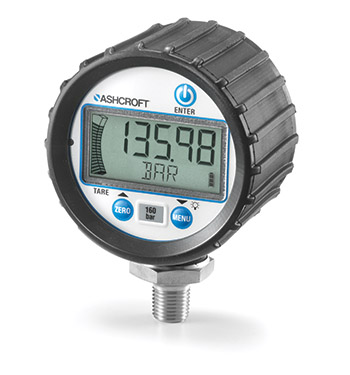

The new Ashcroft DG25 digital pressure gauge provides a 5 full digit LCD in ranges up to 1600 bar. Available in accuracies of 0.5% and 0.25% FS, this new design boasts a minimum battery life of 2000 hours.
Standard features include an IP67 enclosure, selectable units of measure, a 20-segment bar graph indicator, min-max, tare and a list of agency certifications. A backlight and rubber protective boot are also available.
The DG25 series offers 0.5 % of span accuracy, while the laser welded stain-less steel sensor and socket make this product suitable for use with a wide variety of pressure media in demanding industrial applications. This series is also available with enhanced accuracy of 0.25 % of span, making it suitable for many test and measurement uses.
IP67 ingress protection rating means the DG25 is suitable for hose directed water spray such as equipment wash down.
Nine preprogrammed engineering units of measure to read pressure in units applicable to the process or familiar to the technician using the gauge.
The DG25 comes standard with many fea-tures such as: tare, min and max memory, programmable custom engineering units, and pressure ranges from -1 to 1600 bar.
The DG25 was designed with the OEM in mind and can easily be custom configured to meet unique requirements, add or delete features and be customized with private la-bel keypad overlays.
Ashcroft
www.ashcroft.com
