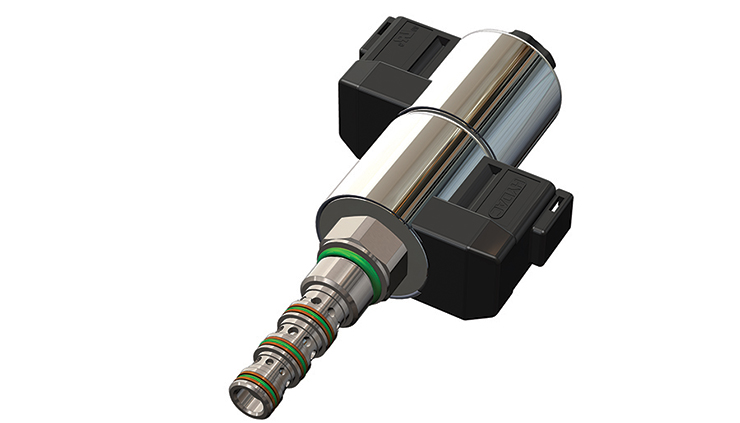

Hydac is pleased to announce the introduction of the new PWK06J series of proportional directional control valves. The series is currently available in Motor Spool “J,” with a closed center option to follow. Though the size is small, the features are big and include:
Compared to any other 3-position, 4-way proportional directional valve, this is a fraction of the size and provides great low flow accuracy and repeatability- Internal leakage less than 100 cc/min
- Hysteresis less than 6%
- Linearity within 3%
- Repeatability within 3%
- 12W ‘D’ or ‘P’ type coils in all voltages and connections
- 1,000 hour salt fog rust protected
- Use with DW06V for optimal pressure compensated operation
According to Gordon Dow, Design Engineering Manager for Hydac, “The addition of the PWK06J to our portfolio continues to cement Hydac’s position as a global leader in the design of cartridge valves. The PWK06J provides superior low flow accuracy while being significantly smaller in size than competitive offerings. It was designed and is manufactured right here in our Chicago facilities for low lead times and advantageous availability, a win-win for us and our customers.”
Hydac
www.hydac-na.com
