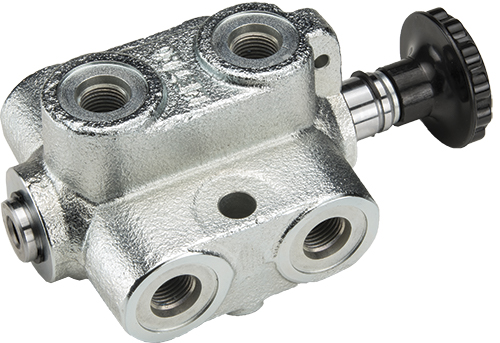

The DS-Double Selector hydraulic valve from Doering is a two position, six-way, double selector valve which directs the flow of
hydraulic fluid to two separate hydraulic circuits within your hydraulic system. This flow divider valve allows the operation of two double-acting cylinders with one four-way control valve or four single-acting cylinders with two-three-way control valves. It is suited for use in mobile and agricultural applications.
The Metro DS two-position flow diverter valve is of the open-crossover type. When the spool is moved and one pair of outlet ports start to close, the other pair of outlet ports start to open. It offers flow capacities of DS 20 gpm (75 lpm); MDS 30 gpm (117 (lpm).
They are rated for 3,000 psi (207 bar) and operating temperatures of -22° to 194°F (-30° to 90°C).
They are easy to mount and feature a chrome-plated spool, for long lasting life. Its body is constructed of high-tensile cast iron and is available with a knob and handle options.
Doering
www.doering.com/products/selector-valve
