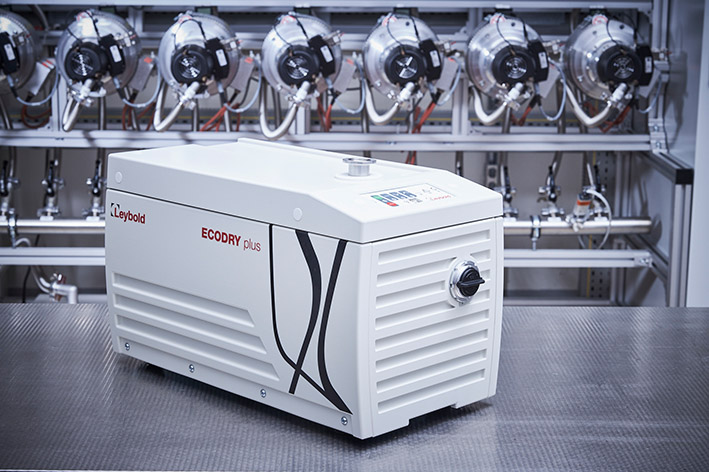

Leybold expands its EcoDry plus product family of dry multi-stage Roots vacuum pumps for laboratory, research and development and analytical applications. The current EcoDry 40 and 65 plus models are now joined by the new, smaller pump sizes 25 and 35 plus, completing the range of quiet, low-maintenance and economical fore-vacuum pumps and fills the gap between ScrollVac 18 plus and EcoDry 40 plus.
A characteristic of EcoDry plus, which is particularly important in research facilities and in analytical laboratories, is its low noise level. “Customers have already appreciated the existing models for this ergonomic advantage. The new EcoDry 25 and 35 plus also have a particularly compact design,” said product manager Alexander Kaiser, naming another important feature.
Thanks to technical optimizations, the vacuum pumps are smaller and more energy-efficient than competitive products. “As a result, we achieve very high pumping speeds with relatively little footprint, which means that a chamber can be evacuated more quickly and a lower ultimate pressure is achieved,” summarized Kaiser.
Above all, the new EcoDry 25 and 35 plus are particularly quiet, with a noise level of 52 dB(A). “A normal conversation is at a noise level of about 55 dB(A),” said Kaiser. So it’s easy to stay close to the pump and have a normal conversation with the pump noise just fading into the background.”
A further advantage of the new EcoDry 25 and 35 plus: it emits neither oil vapor, nor particles. This is particularly important in research institutes and laboratories where a clean working environment is essential. The oil-free multi-stage Roots pumps EcoDry 25 and 35 plus also have a maintenance interval of five years, during which time they run without any servicing. No
oil to check and change so users can devote themselves fully to their research and laboratory work.
While the EcoDry 40 and 65 plus are still available in the two voltage variants 200-240 V for Europe and Asia and 120 V for North America, there is only one variant required for each of the new EcoDry 25 and 35 plus worldwide. Equipped with an integrated pump controller, they are suitable for all voltage ranges. Customers also have the option of connecting a pressure
gauge directly to the vacuum pump. “This integration is interesting because it allows the pump performance to be adapted again specifically to the respective requirement,” said Kaiser.
With the help of the gauge, the pump determines the pressure. If this is low enough, the pump can reduce its speed and becomes even quieter and more energy efficient. What’s more, the EcoDry plus is emitting less heat, which means the air
conditioning system has less work to do.
The EcoDry plus does not simply run through, but achieves exactly the required performance level. In addition, it has connections for easy integration of the pump into external control systems and for reading all data from other systems. With its various interfaces such as USB and RS485 as well as the new intuitive LEYASSIST software, the new EcoDry 25 and 35 plus is thus ideally equipped for all sustainable, future-proof industrial 4.0 applications.
Leybold, an Atlas Copco Vacuum Technique business
www.atlascopcogroup.com
