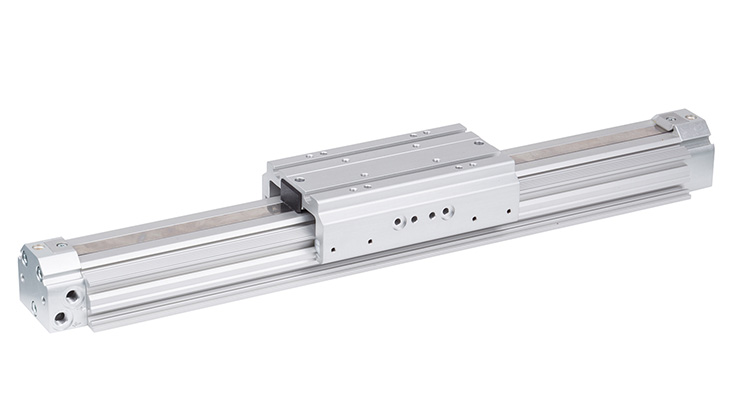

Aventics completes its range of rodless cylinders with the addition of the RTC-SB, a slide bearing version that rounds off the pneumatics specialist’s RTC range of rodless cylinders.
As with the other double-acting rodless cylinders from Aventics, at the heart of the RTC-SB (slide bearing) is its oval piston shape. In relation to its size, it offers a very high load capacity. As a result, engineers can draft even more compact machine designs. Equipped with a lubrication-free slide bearing, the cylinder is maintenance-free and resistant to water, chemicals and dirt. The slide play is optimally adjusted at the factory.
The new RTC-SB rodless cylinder is designed for a maximum speed of 6.5 m/sec (21.3 ft/sec). The maximum stroke is around 6,000 mm (21.6 ft). A wear-free magnetically attached exterior strip, scraper and sealing strip protect the cylinder from dust and dirt. Adjustable pneumatic cushioning extends the service life and ensures precise and gentle operation. The RTC precision cushioning can achieve what Aventics describes as “Ideal Cushioning” with the proper tools and adjustment. Form-fit connection technology from Aventics with standardized mechanical interfaces simplifies machine design and speeds up assembly significantly since no re-adjustments are necessary.
The RTC cylinder completes the Aventics range of double-acting rodless cylinders. The new RTC-SB version with bore sizes ranging from 25 to 40 mm closes the previous gap between the basic version (RTC-BV) and the versions designed for higher loads, the RTC-CG (compact guide) and RTC-HD (heavy duty). RTC cylinders can be easily configured online with a part number assigned, CAD drawings and other documentation available in minutes.
Aventics
www.aventics.com/us
