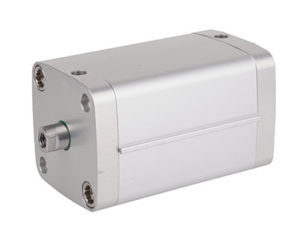

New CCL-IC series of compact pneumatic ISO cylinders from Aventics feature a hygienic design, making them suited for applications with limited installation space combined with stringent hygiene requirements, such as in food and beverage operations.
With nine bore sizes, the CCL-IC cylinders reportedly cover the broadest range of hygienically designed cylinders on the market. Bore sizes range from 16 to 100 mm, with maximum strokes to 500 mm. Position is tracked by a sensitive ST6 proximity sensor; the sensor rail is located on the outside at a 90° offset relative to the air connections to ensure optimum end-position sensing even for short strokes.
The CCL-IC is readily cleaned thanks to smooth surfaces, lightweight, and compact to ISO 21287 standards. Universal mounts permit straightforward installation without additional mounting accessories. The weight-optimized profile tube, head and cap are made of anodized aluminum, with screws and piston rod made of stainless steel. The scraper and lubricants are approved for food industry use. Hygienic protective caps cover unused mounting holes.
Numerous versions provide user flexibility, including single- and double-acting, single or double rod end, and internally or externally thread-rod versions. The CCL-IC complements other hygienic Aventics components such as valves, air preparation units and fittings.
Aventics
www.aventics.com
