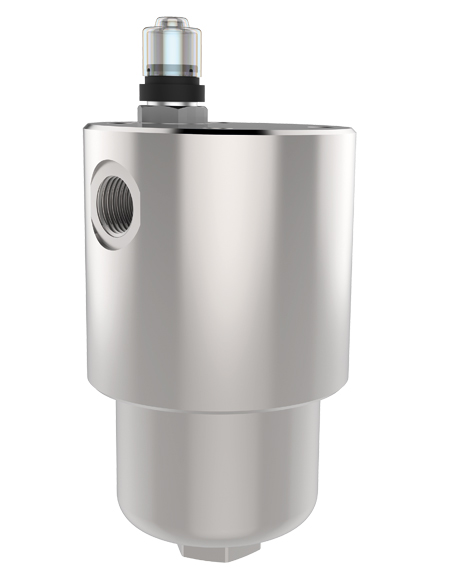

The HFL 180 high-pressure filters of the HFL series are suitable for applications with extreme ambient conditions thanks to their corrosion-resistant filter housings made of stainless steel. Typical applications include the energy and disposal, mining industry, maritime and offshore sectors. Three different housing
Three different housing lengths, as well as various filter finenesses, are available to provide the best possible filtration concept according to the respective requirements. The use of filter elements with star-folded filter material ensures the lowest pressure losses and high dirt absorption. This results in particularly long maintenance intervals and excellent results in terms of oil cleanliness. The standard built-in optical clogging indicator signals the time of the filter maintenance, whereby an optimal utilization of the filter lifetime achieved.
High-pressure filter HFL 060 offers the following:
- Nominal flow rate up to 180 l/min
- Filter fineness 10 µm(c)…60 µm(c)
- Operating pressure up to 400 bar
- Hydraulic fluid: Mineral oil and biodegredable fluids (HEES and HETG, see info-sheet 00.20)
Argo-Hytos
www.argo-hytos.com
