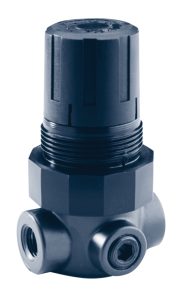

ControlAir, a leading manufacturer of precision pneumatic and electro-pneumatic control products, announced the new Type 855BP Miniature Back Pressure Regulator. Type 855BP is a compact relief valve that provides economical, high-performance pressure relief with an adjustable set point. The valve is normally closed and will remain closed until the inlet pressure exceeds the regulator’s set point.
A typical application for the Type 855BP Miniature Back Pressure Regulator is to protect against over-pressurization in the downstream portion of a pneumatic system. In an over-pressurization scenario, the air flowing through the Type 855BP can be vented to the atmosphere or could be captured and directed to trigger an emergency shut-off valve.
The Type 855BP can relieve at a rate up to 35 scfm (990 Nl/min) and is available in 1/4-in. NPT porting. The Type 855BP will handle a 250 psi (17.5 bar) maximum system pressure and offers five set point pressure ranges from 0 to 5 psi (0 to 0.4 bar), up to 0 to 100 psi (0 to 7 bar). The Push-Pull locking knob feature prevents inadvertent pressure adjustment.
ControlAir manufactures precision pneumatic and electro-pneumatic controls. ControlAir’s markets include process control, semiconductor, printing and converting presses, diagnostic and surgical medical equipment, robotics, quality control, automotive, analyzers, compressors, pumps, and paint equipment. ControlAir’s website offers full product specifications with pdf files and product 3D CAD models.
ControlAir
controlair.com
