Editor’s note: This article was updated with expanded information on digital and dry pressure gauges, as well as gauge calibration.
A pressure gauge is a fluid intensity measurement device. Pressure gauges are required for the set-up and tuning of fluid power machines, and are indispensable in troubleshooting them. Without pressure gauges, fluid power systems would be both unpredictable and unreliable. Gauges help to ensure there are no leaks or pressure changes that could affect the operating condition of the hydraulic system.

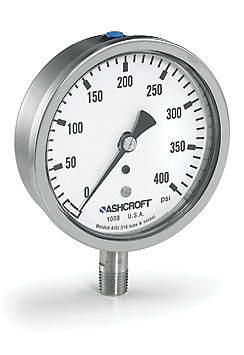

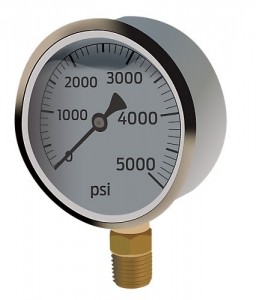

The hydraulic system is designed to work in a set pressure range so the gauge must be rated for that range. Hydraulic pressure gauges are available to measure up to 10,000 psi, although maximum hydraulic pressure is typically in the 3,000 to 5,000 psi range. Hydraulic gauges are often installed at or near the pump’s pressure port for indication of system pressure, but can be installed anywhere on the machine where pressure needs to be monitored—especially if sub-circuits operate at a pressure rate different from pump pressure, such as after a reducing valve. Often, pressure-reducing valves have a gauge port to tap into, allowing you to directly monitor its downstream pressure setting.
Pressure gauges have been used in fluid power systems for well over a hundred years, so it might be a surprise that pressure gauge designs continue to evolve. The evolution of pressure gauges for fluid power applications has, generally, been an increase in application specific features. For instance, pressure gauges are now more routinely designed with hydraulic friendly pressure connections (such as SAE/Metric straight threads) to prevent system leaks. Analog gauges with custom scales are more common and digital pressure gauges with customizable firmware allow process measurement of pressure-based measurement of leaks or other parameters like torque, load, force and hardness.
Pneumatic and compressed air systems are also rife with gauges, as pressure is also measured in many locations throughout the system. Pressure is measured at the receiver(s), as well as at every FRL or stand-alone regulator in the system. Sometimes pressure is measured at pneumatic actuators as well. Typically, pneumatic pressure gauges are rated for not much more than 300 psi, although typical systems run around 100 psi.
Pressure is measured in three ways — absolute, gauge and vacuum. Absolute pressure is a measure of actual pressure including ambient air, which is zero-referenced with a perfect vacuum, but can be as high as 14.7 psi at sea level. Absolute pressure readings are considered in applications interacting with ambient air, such as the compression ratio calculation for flow (cfm) requirements. Gauge pressure is zero-referenced against ambient pressure and is used in most applications operating in, but not with, ambient air, such as in fluid power systems. Disconnected from equipment, gauge pressure will read zero. Finally vacuum “pressure” is expressed in Torr, or referenced against ambient pressure, as with “in.-Hg” (inches of mercury) units, which measures pressure below ambient.
The hydraulic gauge can withstand different pressure ranges based on what type of gauge style it is and what material it is made out of. Because of this, the gauge style and the material make up two of the most important selection criteria for gauges.
They are many types of gauge styles, the most common being Bourdon tubes and bellow gauges. Bourdon tubes function by taking the pressure and converting it into mechanical energy. This energy moves a dial in the gauge, displaying the current amount of pressure in the system. Bourdon tube gauges are currently some of the most common gauges and have different configurations such as curved, helical and spiral. The different style of tubing, the size of the tube and the material it is made out of all vary based on the pressure range. One important characteristic to note is the cross section of the tubing changes with increasing pressure. Generally, as the working pressure of the gauge increases, the shape of the cross section of the tube’s design will gradually change from an oval shape to a circular shape.

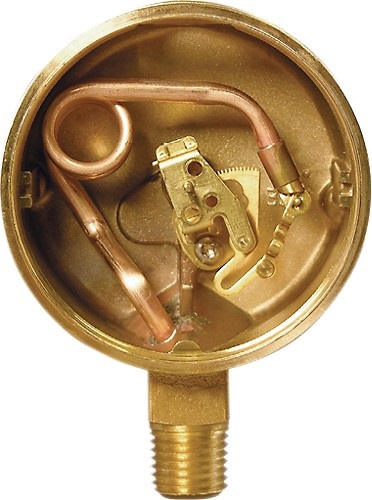

Bourdon tube operation is simple. They consist of a semicircular and flat tube of metal, fixed at one end and attached to a sensitive lever mechanism at the other. As pressure increases inside the tube, the force of the fluid attempts to straighten out the curved tube. The tube then pulls away from the lever, which being connected to the needle on the display, shows the pressure at the fluid port.
While bellow gauges function similarly to Bourdon tubes, they differ in the fact that they use a spring to judge the amount of energy to push the dial. The spring is expanded and compressed by the pressure in the tubes and the energy created by that movement is transferred into gears that move the pressure dial.
The pressure range at which the gauge will be working is a primary selection factor for the type of material used to make the gauge. Gauges operating at higher pressures generally tend to be made of materials such as steel; when operating at lower pressures, they tend to be made of bronze.
Most pressure gauges in North America come with a 1⁄4-in. NPT male, but SAE thread is gaining popularity. The use of test-point adapters at various locations on the hydraulic system allows for measurement during troubleshooting without having to purchase dozens of pressure gauges. The test-point fitting attaches to the gauge, which can be screwed onto the test points throughout the circuit, allowing you to connect under pressure to measure at various points in the system. Most gauges are 21⁄2 in. in diameter, and can be either top-mount or panel-mount styles, but gauges are available in every size, material and construction imaginable.
Digital pressure gauges offer accuracy down to 0.025%. Accurate observation of suction or case pressure, in some cases, may help when you can measure and observe with precision. Digital pressure gauges may use data logging to save the minimum and maximum value and then reset them easily to restart a cycle. Additionally, digital gauges withstand vibration more than analog designs, thus ensuring reliable calibration.
Whether used for testing equipment or operating machinery, the right pressure gauge helps reduce costly downtime. In mechanical gauge applications for hydraulic systems, the common threats to gauge reliability are vibration, pulsation and pressure spikes. Therefore, it’s best to look for gauges designed specifically for hydraulic applications. These features include: a forged brass case to prevent resonant frequencies from destroying internal components; a liquid-filled case to protect the gauge from vibration and extreme pressure cycles; and a restrictor to prevent damage to the gauge from pressure spikes. Although the liquid used in the gauge varies from application to application, glycerin is commonly used and performs well in many conditions. The higher the viscosity of the liquid, the more it dampens the vibrations. When choosing between a dry, water- or glycerin-filled gauge, it is also important to consider the following: temperature range, needle response time required, changes in pressure and the amount of vibration expected from the application. If your machine is not prone to heavy vibrations, and you are looking for a less expensive option, a dry gauge will suit. Regular care and maintenance is required to ensure they do not break down. Dry gauges are especially suited to extremely cold environments.
All gauges should come pre-calibrated from the factory and require little maintenance thereafter. However, in high vibration applications, repeated calibration may be necessary. It is best to use the original factory standard settings for repeated calibrations.
Finally, depending on the demands of the application, gauge accessories, such as specialized restrictors, piston snubbers or even diaphragm seals, may be needed to prevent premature gauge failure.
