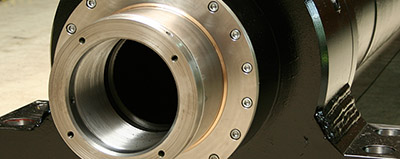

German manufacturer builds multiple cylinder types, including: single-acting, double-acting, telescopic cylinders, and telescopic cylinders with double action. Diameters can reach 1600 mm, with stroke lengths of up to 50 m.
Operating pressures are up to 800 bar standard, or 6000 bar for special constructions. Materials offered are steel, stainless steel, aluminum, bronze, red brass, and synthetic materials. Temperature ranges from -60° C up to 280° C. External pressure ranges: up to 600 bar.
Other features/options:
Pressure media: mineral oil, biodegradable hydraulic oil, thermo oil up to 600° C, water, emulsions, air, steam, gas (also heated up to 200° C), low temperature media, aggressive media
Movement speed: up to 30 m/sec
Mounting types: bearing, flange, foot mounting, internal/external screw thread, swivel head, etc.
Coatings: hard-chrome, ceramic coatings, hard-metall coatings, nitride
Classifications: Germanischer Lloyd, Lloyd’s Register, DNV, Luftfahrt, Bergbau, Schwermaschinenbau, Stahlwasserbau, DIN19704 und DIN19705
Burre Hydraulik
www.burre-hydraulik.de
