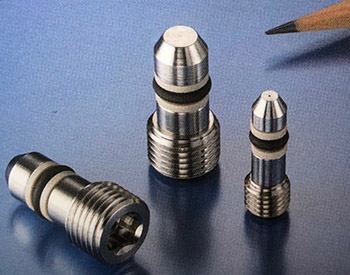

Line of dual sealing AFO (axial force only) plugs perform under high pressure environments, offer a leak-tight, metal to metal seal. Can incorporate an O-ring with two backup rings capable of venting pressures to 15,000 psid. In open position, pressure can be vented out of a side port to remove air from a hydraulic system, safely release trapped gas, or perform a charge/fill function.
Specifications:
- seals to 56,000 psi closed
- rated to 15,000 psi open
- reusable; allows easy access to sealed passageways
- temperature rating of 450° F
- floating self-seal aligns, preventing galling
- axial force only, so small boss size
The Lee Company
www.theleeco.com
