For the past 30 years, engineering company transfluid from Schmallenberg has been producing its mobile universal tube bending machine, which is designed particularly for hydraulics tubing, and can process tubes with diameters from 6 to 42 mm.

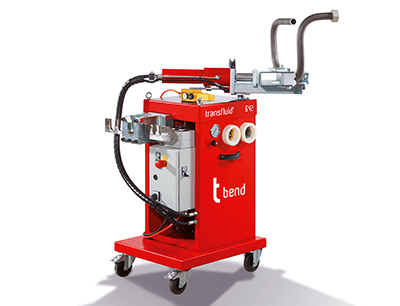

Mobile hydraulic tube bending machine from transfluid with integrated tube burring unit and cutting ring pre-assembly tool.
“What is special about our mobile bender is that it offers all the functions you need for hydraulics tubing and it only needs a very small production area, just one square meter,” said Stefanie Flaeper, sales managing director.
The transfluid MB 642 mobile bending machine has a bending system and either a circular saw or a deburring unit can be added. Accessories for cutting ring pre-assembly and flaring can also be added. All tubes used in hydraulics can be bent with this machine, like those with thin tube walls or pressure pipes with thick walls. For instance, it can also process tubes up to 42 mm and wall thickness up to 4 mm without any problems, or a 38×6 mm tube.
“With this machine you can produce extremely compact tube configurations. No other machine can achieve the same compact tube processing,”said Flaeper.

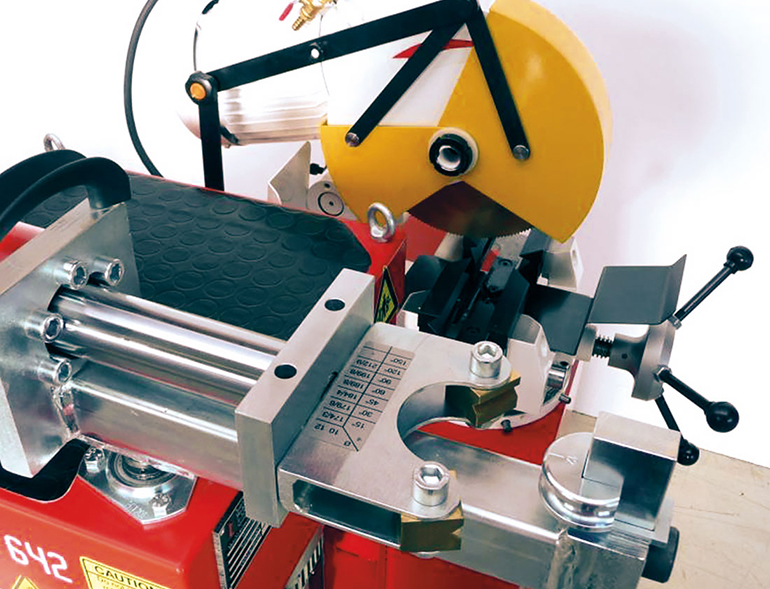

Metal Cutting Circular Saw, which can easily be integrated on the side of the mobile bending machine.
The bending radii are 2-2.5xD on average. Occasionally, a 3xD radius is achieved with tubes with thin walls. Another advantage is that the machine has a very compact bending head and that the tubes move in an empty space, so there are no collision points with the machine.
The bending angle adjustment on the transfluid MB 642 bending machine makes it possible to produce bends with precise bending angles. It is not necessary to have a straight area between the bends, which means the complete bending geometry can be extremely compact. These tubes do not have a swiveling range either, so that very long tubes too can be processed in very tight spaces without any problems. Everything is compact, making the machine ideal for mobile use.

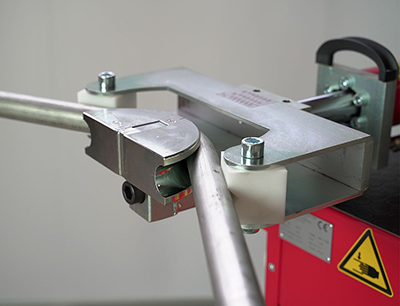

Simple and precise tube bending with the transfluid mobile bending machine.
Trimming and cutting can also be done directly on the machine. The burring unit can prepare the tubes for further processing. As such tubes are usually supplied with the corresponding connections, the mobile bending machine also has an integrated tool for cutting ring pre-assembly that can fit all the standard cutting rings on the market.
If it is necessary to use a flaring device instead of the cutting ring one, it is possible to switch them by hand with one single operation, making it possible to process the different types of connections without any problems Using it requires no training.
