Uniflex hose cutting machines make clean cuts – but the generation of dust, fumes and odors is inevitable. Therefore, Uniflex has developed the UVC 50, an external suction and filter device for simultaneous use with up to three cutting machines. A balanced compromise between volume flow and negative pressure keeps the air clean during the cutting of hose assemblies and protects the operators from fine particles. After all, health at the workplace should always have top priority.

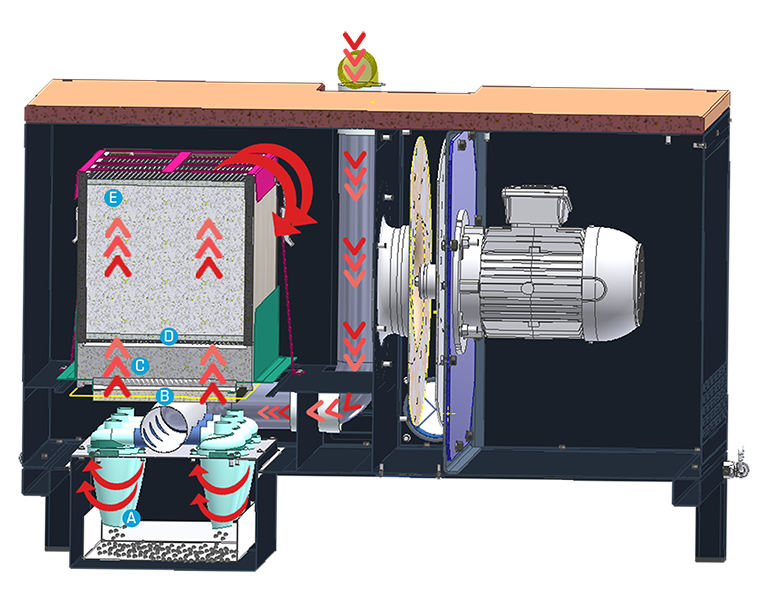

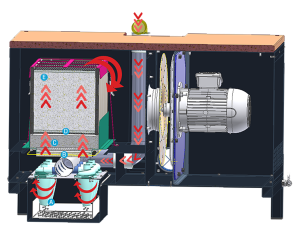

The multi-step exhaust air purification runs with a spark stop function, cyclone filter technology for the pre-separation of coarse particles, HEPA filter for dust, particle filter for fine particles and carbon filter for odor neutralization and two full years of Uniflex manufacturer’s warranty (except wear parts like filters, and so on).
The wheel-equipped devices with a basic footprint of 118 x 70 cm are 88 cm in height and weigh approximately 150 kg – including a 10-liter dust collection container. With a maximum volume flow of 700 m3/h and an extremely high negative pressure of up to 3250 Pa, the Uniflex UVC 50 has an easy-to-clean, easy-to-exchange main filter surface of 5 m2. Based on an intake voltage of 400 V, the device offers 1.9 kW of drive power. Of course, the Uniflex UVC 50 can also be connected to other suitable machines that require high-performance suction. Suitable devices should have an intake diameter of 60-120 mm. The suction and filter performance increases with the size of the diameter.
As with all devices and machines from Uniflex, you get a two-year manufacturer`s warranty on the UNIFLEX UVC 50, excluding wear parts, such as filters, and so on, as well as any damage caused by improper use or faulty connection to devices/cutters from other manufacturers.
